Rules and durable flow graphs

This is an executable migration increment against shopware/core 6.7.14.2, not a claim that every Shopware plugin, commercial extension or DAL/API is compatible. The pinned MIT PHP classes remain an independent behavioral reference.

What is connected

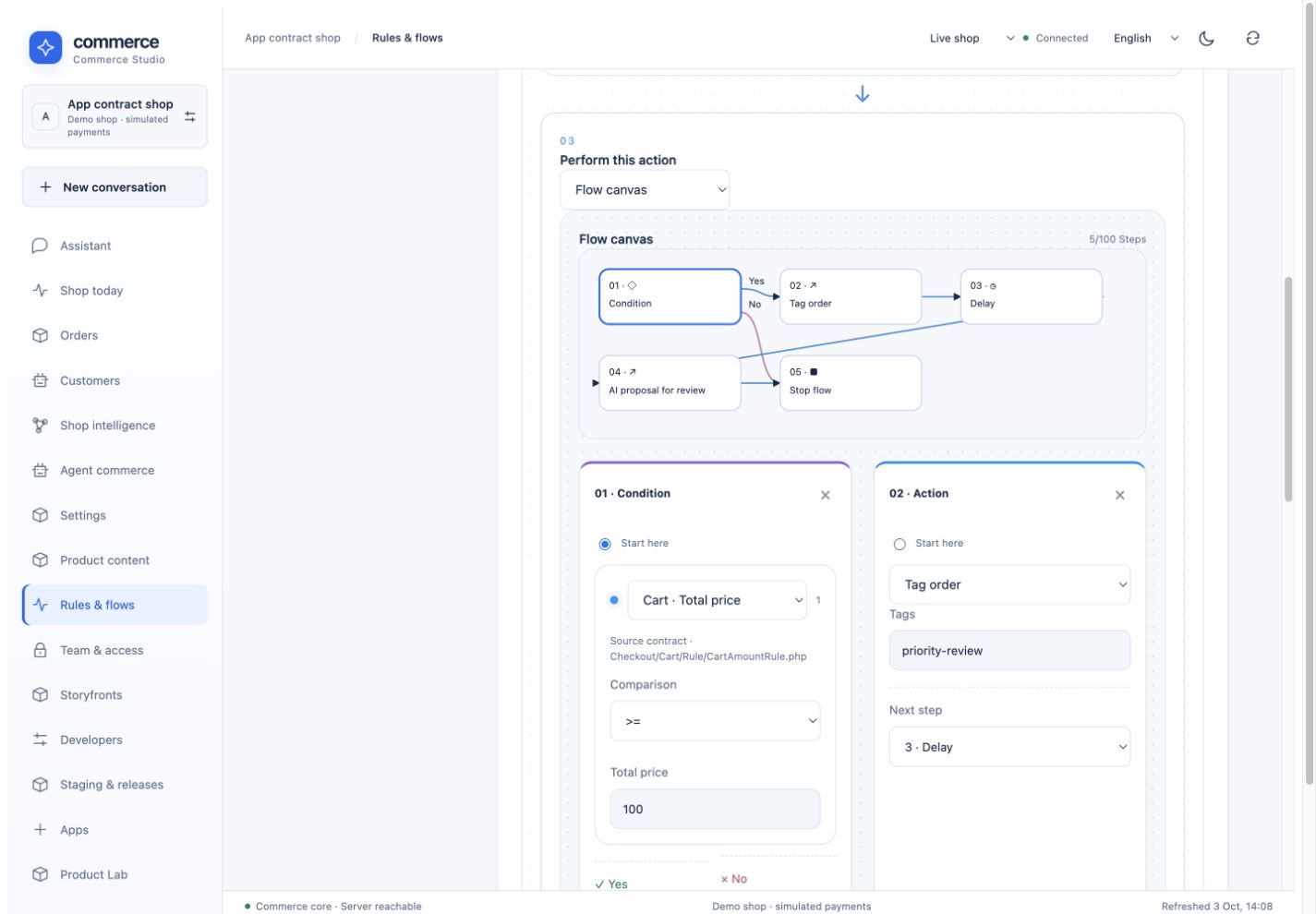

The Studio rule editor exposes source-named conditions with localized labels and typed parameters. The Flow workspace has a connected diagram and editable conditions, true/false branches, consecutive actions, persistent delays and stop nodes. Installed app actions use the same schema/permission gateway as HTTP and MCP. AI nodes create reviewable proposals through the existing inference provider selection; they do not apply a model response automatically.

Rules consume server-owned cart, product, selected-address, customer-history and order facts. Product rule metadata is edited by an authorized merchant and is inherited by variants. Purchase prices and all internal rule metadata are excluded from public product serialization. Rule preview returns a Boolean and no side effects, rather than the private facts. Missing required scope is an error, including underneath NOT.

Saved rules can be referenced with {"type":"ruleReference","ruleId":"eligible"}. Only referenced IDs are fetched using tenant-bound indexed batch reads, with 100 referenced rules and depth eight as bounds. Reference limits apply independently to each matching flow; unrelated events and inactive flows are not loaded. Event jobs freeze their definitions and revisions. Missing/disabled references fail explicitly; recursive references cannot run indefinitely. Current actor membership and granular permissions are still checked when each delayed action executes.

Starting configuration and lifecycle

Every newly provisioned merchant/operator shop has a persisted default storefront, three editable rules (default_all_orders, default_business_customers, default_cart_100) and two editable note flows: default_order_received on order.placed, and default_payment_received on payment.captured. These flows write real order activity after committed events. They do not send emails, charge customers, call a model, or enable a discount. Connect the relevant app before adding email, Slack or AI actions. Built-in names/instructions ship in EN/DE/ES/FR; content editing uses one selected language with the shop-main-language fallback.

Migration 040 backfills missing start definitions once, without overwriting any existing definition. Signup provisioning runs the same database function before customer creation. Deleted starter rules/flows stay deleted on later server starts. Sandbox creation copies the current merchant definitions rather than reseeding them.

The main channel can be renamed, translated and assigned catalog/navigation content. It inherits the shop languages (including existing regional-language fallback) and shared company/checkout basis; additional channels can choose their own languages and sparse settings overrides. The main channel cannot be deleted, but can be paused or made private with a personal merchant preview. See channel admission and domains. Storefront reads now use its persisted catalog configuration instead of bypassing it as an invisible code special case.

Commerce invariants remain in Rust: stock reservations, price/tax calculations, payment authority and admissible order transitions. Flows orchestrate merchant processes through those guarded APIs. The starter business/cart rules are reusable conditions, not a claim that all legacy price/availability rules were converted into configurable flows. Campaign start/end, priority, exclusivity and stable saved-rule references are editable in Studio. No automatic commercial offer is seeded.

Rules, campaigns, flows and additional channels expose the same revision-bound lifecycle in HTTP and MCP. Studio shows searchable definitions, active state, explicit editing and one shared confirmation dialog. Deletion is blocked by saved rule/channel references (including inactive definitions), settings references, redeemed promotions, unfinished/uncertain jobs, channel customers/carts/orders, product visibility and channel overrides. Deactivate historical definitions rather than destroy these links. The server rechecks dependencies and revisions inside the delete transaction; tenant-scoped foreign keys also prevent checkout/customer writes from racing a channel deletion. Flow projection takes shared definition locks so already queued work cannot be lost in that race. Completed flow jobs and existing orders survive deletion of an otherwise unused definition. History records the deletion; the current history UI does not restore a deleted definition.

automation_lifecycle follows a real checkout into the starter flow and tests own/ foreign tenants, stale deletes, rule references, main-channel protection and the same MCP deletion handler. Frontend lifecycle tests cover persisted main-channel editing, granular permissions, selection/search, confirmation, blocked dependency lists and failures that remain visible. These checks are not whole-core coverage.

Source inventory and limits

reference/automation-catalog.php reflects 114 concrete production Rule subclasses and 16 Core FlowAction names. It excludes test classes and abstract helpers. This corrects the old text-only 120-name inventory, which was not an accurate count of executable production classes.

reference/automation-native.json explicitly binds 108 of the 114 classes to native scope implementations. reference/automation-registry.json combines those bindings with the original configuration metadata. Registered scope support is not complete behavioral equivalence: every catalog row keeps behavioralParity:false, and the complete-catalog flag stays false. The independent PHP comparison currently checks 432 cases across 74 original condition classes, including missing customers, wildcard/set/numeric operators, calendar boundaries, custom fields, purchase prices, goods filters and Boolean containers.

These six source names remain disabled, with a visible explanation in the editor:

Further limits: native IDs need an explicit UUID migration map; arbitrary source constraints have not all been ported; original nested promotion/group scopes and every non-product line subtype are not yet proven equivalent; supplier/date/list-price/other imported product fields need correct native data. Source-named order rules require a real order event and fail during cart-only preview. Calendar behavior is compared for the included fixtures; the entire source time-zone/date matrix is not certified.

Native action contract

The sixteen original Core action names are registered, plus note, ai_proposal and app_action. They dispatch actual domain operations rather than descriptive placeholders.

Source force_transition, original multi-state arrays, arbitrary customer-group UUIDs, custom document renderers, paid extension action sets and the complete Shopware FlowSequence import/export format are not claimed compatible. Native graph JSON is the current interchange format. Preserve the source original and use explicit identity/configuration mappings rather than guess them.

Durable execution

The event outbox projects matching flows to flow_jobs. A malformed stored flow, oversized reference set or missing rule scope becomes its own failed job and does not poison other flows or the commerce event. Each action gets a stable flow:<job>:<node> key and a flow_steps receipt before execution. Local tag/field effects and the local activity receipt commit together. Replaying a confirmed step uses its stored result.

A delay stores the next cursor, trace and available_at in PostgreSQL and releases its worker. Another worker can continue when it is due. Membership is rechecked at continuation. The worker renews its lease between nodes. An interrupted unconfirmed action is reported as uncertain; external effects are not blindly repeated. This is not an exactly-once guarantee over arbitrary third-party systems. Existing native transition events may start other flows; arbitrary cycles between separate flow definitions still need a global recursion policy.

The current built-in producers remain order placement, payment capture/update and order/payment/delivery state changes, plus namespaced app events. All upstream customer/authentication/catalog and commercial-extension triggers have not been ported. Customer/tag metadata actions currently have activity receipts but do not emit a complete upstream DAL event set.

HTTP and MCP

Configuration reads/previews require settings.read; writes/deletes/imports require settings.write. Each action additionally checks its specific customers/orders/documents/apps/catalog/knowledge permission. Preview requires the same cart context token as storefront cart operations. API and MCP call the same handlers.

Example native graph (data.pipeline, together with a translated flow name, instruction, locale, trigger and top-level condition):

{
  "entry": "check",
  "nodes": [
    {"id":"check","kind":"condition","condition":{"type":"ruleReference","ruleId":"eligible"},"on_true":"tag","on_false":"stop"},
    {"id":"tag","kind":"action","action":"action.add.order.tag","config":{"tags":["priority"]},"next":"wait"},
    {"id":"wait","kind":"delay","seconds":60,"next":"stop"},
    {"id":"stop","kind":"stop"}
  ]
}

Graphs are acyclic, contain 1..100 reachable nodes and allow delays up to thirty days. An edge to an absent node, duplicate node ID, cyclic graph or unreachable node is rejected before saving.

Files and verification

• src/automation_rules/: pure source comparison, field, calendar and container evaluation.
• src/marketing/{facts,line_facts,customer_facts,rule_snapshot}.rs: authoritative tenant context and frozen references.
• src/marketing/{pipeline,pipeline_runtime,flow_actions,flow_mutations,flow_access}.rs: graph admission, receipts/delays, action dispatch, transactions and current rights.
• frontend/src/admin/automation/: localized rule/action editors, graph overview and typed graph helpers.
• migrations/025-automation-pipelines.sql: customer metadata, customer groups, delayed jobs and per-node receipts.

Run python3 scripts/automation_registry.py to check reflection/native catalog drift (use --write only after review); python3 scripts/automation_differential.py compares actual PHP classes and the compiled Rust rule evaluator. python3 scripts/verify_integration.py --only automation creates a disposable PostgreSQL database and checks the real checkout-to-flow path without provider traffic, including actual tag addition/removal, typed customer fields, attribution codes, customer/group status changes and session revocation. The Studio refreshes execution summaries every three seconds while the automation workspace is open, showing persisted branch decisions and scheduled continuation without reloading all configurations. Tenant/recent-job, ready-time, expired-lease and customer-history indexes bound the common database access paths. Frontend tests exercise graph connections/deletion, incomplete JSON editing, four languages and source payload round-trips.

Two production guards, exact XOR hit count and the thirty-day delay boundary, are extracted to Lean with precise properties and rejected negative mutations. SQL, async jobs, time parsing, third-party actions and the whole rule interpreter remain outside that proof boundary. Neither the tests nor these partial proofs establish bug-free whole-core behavior or 100% source coverage.
